Low-pass filters are essential components in electronics, communication systems, signal processing, and control engineering. Their primary function is to allow low-frequency signals to pass through with minimal attenuation while reducing or eliminating unwanted high-frequency signals. These unwanted high-frequency components often appear as electrical noise, electromagnetic interference, harmonics, or other distortions that can degrade the quality of a signal. By selectively passing frequencies below a specified cutoff frequency, low-pass filters improve signal clarity, system stability, and overall performance. They are widely used in audio systems, radio communication, measurement instruments, power supplies, medical equipment, and digital electronics.
The operation of a low-pass filter is based on frequency-dependent attenuation. Signals with frequencies below the cutoff frequency experience little or no reduction in amplitude, while signals above the cutoff frequency are increasingly attenuated. The rate at which the signal decreases beyond the cutoff frequency depends on the filter order and design. Higher-order filters provide a steeper roll-off, allowing for better separation between desired and unwanted frequencies. However, increasing the filter order also increases circuit complexity and may affect phase response and transient performance. Therefore, engineers must carefully balance performance requirements with implementation cost and complexity.

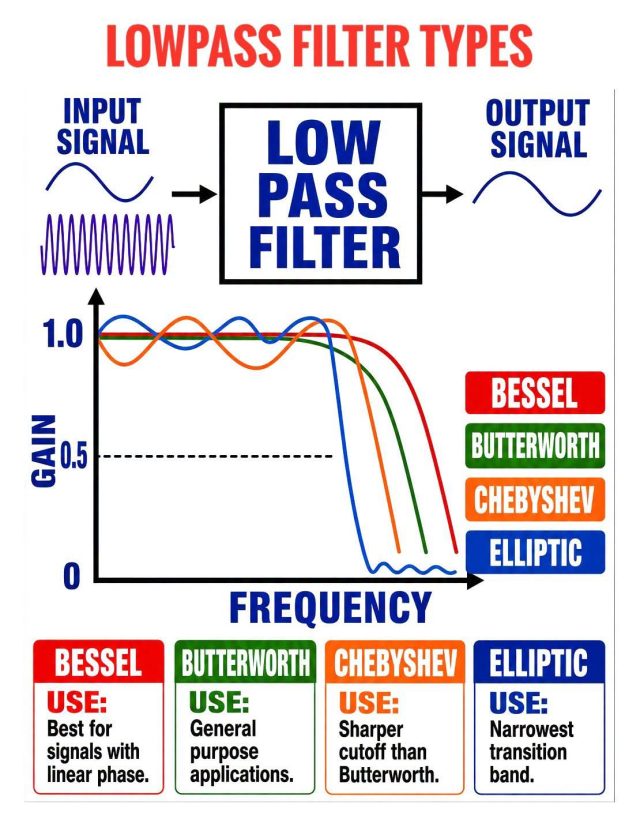

Several types of low-pass filters have been developed to meet different application requirements. The four most common filter approximations are Bessel, Butterworth, Chebyshev, and Elliptic filters. Each filter type has unique characteristics regarding amplitude response, phase response, transition sharpness, and ripple. No single filter is ideal for every application. Instead, the choice depends on the specific performance priorities of the system, such as maintaining signal waveform, maximizing frequency selectivity, or minimizing distortion.
The Bessel low-pass filter is recognized for its excellent phase response and nearly constant group delay across the passband. Group delay measures how different frequency components of a signal are delayed as they pass through the filter. A constant group delay ensures that all frequency components arrive at the output simultaneously, preserving the original waveform of complex signals. This characteristic makes the Bessel filter especially valuable in applications where signal shape is more important than achieving a sharp frequency cutoff.
One of the primary advantages of the Bessel filter is its ability to preserve transient signals with minimal overshoot, ringing, or distortion. This makes it particularly suitable for audio processing, speech communication, pulse transmission, video signals, and instrumentation systems. In audio applications, preserving waveform integrity helps maintain sound quality by preventing phase distortion that can alter musical signals. Similarly, in digital communication systems carrying pulse-shaped signals, maintaining pulse shape reduces timing errors and improves data reliability. Although the Bessel filter provides superior time-domain performance, it has a relatively gradual roll-off compared to other filter types. As a result, it is less effective when strong suppression of nearby high-frequency interference is required.
The Butterworth low-pass filter is one of the most widely used filter designs because it provides a maximally flat amplitude response in the passband. This means there are no ripples or fluctuations in the passband, resulting in smooth and uniform signal transmission. The Butterworth filter offers a good compromise between amplitude accuracy, implementation simplicity, and frequency selectivity, making it suitable for a wide range of general-purpose applications.
Unlike the Bessel filter, the Butterworth filter sacrifices some phase linearity to achieve a sharper attenuation beyond the cutoff frequency. Although some phase distortion occurs, it is generally acceptable for many engineering applications where waveform preservation is not the primary concern. Butterworth filters are commonly used in audio amplifiers, sensor conditioning circuits, power supply filtering, analog-to-digital conversion systems, and communication receivers. Their predictable frequency response and ease of design have made them a standard choice in both analog and digital filter implementations.
The Chebyshev low-pass filter was developed to improve frequency selectivity beyond what is possible with the Butterworth filter. It achieves a much steeper transition between the passband and stopband, allowing unwanted high-frequency signals to be attenuated more rapidly. This sharper cutoff makes Chebyshev filters useful when frequencies close to the cutoff frequency must be separated effectively.
The improved selectivity of the Chebyshev filter comes at the cost of ripple in the passband. Instead of maintaining a perfectly flat amplitude response, the gain oscillates slightly within the passband before reaching the cutoff frequency. The amount of ripple is determined during the filter design process and represents a trade-off between passband flatness and cutoff sharpness. Greater ripple allows for an even steeper roll-off, while smaller ripple provides better signal accuracy. Despite the ripple, Chebyshev filters are widely used in communication systems, radar equipment, data acquisition systems, and instrumentation where frequency discrimination is more important than perfectly uniform amplitude response.
There are two common forms of Chebyshev filters. Type I filters contain ripple only in the passband while maintaining a smooth stopband. Type II filters, sometimes called inverse Chebyshev filters, eliminate passband ripple but introduce ripple into the stopband. Engineers choose between these two versions depending on whether passband accuracy or stopband performance is more critical for the application.
The Elliptic low-pass filter, also known as the Cauer filter, provides the steepest cutoff among the standard filter approximations. It achieves the highest possible selectivity for a given filter order by allowing ripple in both the passband and the stopband. Because of this characteristic, the transition region between the passband and stopband becomes extremely narrow, allowing unwanted frequencies to be rejected very quickly.
The exceptional frequency selectivity of the Elliptic filter makes it particularly suitable for applications where limited bandwidth is available or where strict separation between adjacent frequency bands is required. Examples include radio frequency communication systems, wireless transmitters and receivers, satellite communication, spectrum analyzers, and precision instrumentation. In these systems, rapid attenuation of unwanted frequencies helps reduce interference and improve signal isolation.
However, the advantages of the Elliptic filter are accompanied by several disadvantages. The ripple present in both passband and stopband can introduce amplitude variations that may not be acceptable in high-fidelity audio or precision measurement systems. Furthermore, the phase response is generally poorer than that of Bessel or Butterworth filters, leading to greater waveform distortion. Consequently, Elliptic filters are usually selected only when maximum frequency selectivity outweighs concerns about phase distortion or amplitude ripple.
Selecting the most appropriate low-pass filter requires careful evaluation of the application’s performance requirements. If preserving waveform shape and minimizing phase distortion are the highest priorities, the Bessel filter is generally the preferred choice. If a smooth passband response and balanced overall performance are desired, the Butterworth filter offers an excellent compromise. When sharper frequency separation is necessary and some passband ripple can be tolerated, the Chebyshev filter provides improved selectivity. Finally, when the steepest possible cutoff is essential and ripple in both passband and stopband is acceptable, the Elliptic filter delivers the highest level of frequency discrimination.
In practical engineering, designers often evaluate several performance factors simultaneously. These include cutoff frequency, filter order, insertion loss, passband ripple, stopband attenuation, group delay, phase linearity, circuit complexity, power consumption, and implementation cost. Modern computer-aided design software allows engineers to simulate and compare different filter responses before selecting the most suitable design. This optimization process ensures that the chosen filter meets the required specifications while minimizing unwanted trade-offs.
In conclusion, low-pass filters are indispensable tools for controlling signal bandwidth and reducing unwanted high-frequency components such as noise and interference. Although all low-pass filters perform the same basic function, their individual characteristics differ significantly. Bessel filters excel in preserving waveform shape through superior phase response. Butterworth filters provide a maximally flat passband suitable for general-purpose filtering. Chebyshev filters achieve sharper cutoff characteristics by allowing controlled passband ripple, while Elliptic filters provide the steepest cutoff through ripple in both passband and stopband. Understanding these differences enables engineers to select the most appropriate filter for each application, ensuring the desired balance between signal quality, frequency selectivity, phase response, and overall system performance.
