Understanding TX Power (Transmit Power) in Microwave Communication
Introduction
Microwave communication is one of the most important technologies used in modern telecommunications networks. It enables high-speed wireless transmission of voice, data, video, and internet traffic between geographically separated sites without requiring physical cables. Mobile network operators, internet service providers, utility companies, broadcasters, and government organizations all depend on microwave links to provide reliable connectivity over short and long distances.
One of the most critical parameters that determines the performance of a microwave link is TX Power, which stands for Transmit Power. TX Power represents the strength of the radio frequency (RF) signal that a microwave transmitter sends toward the receiving station. It directly influences the received signal level, communication reliability, link availability, and the ability of the system to maintain connectivity during adverse weather conditions.
Although increasing transmit power can improve communication performance, it is only one part of an overall microwave link design. Antenna gain, cable losses, receiver sensitivity, frequency band, atmospheric conditions, and path distance also play essential roles in determining the quality and reliability of a microwave connection. Understanding TX Power allows engineers to properly design, optimize, and troubleshoot microwave communication systems.

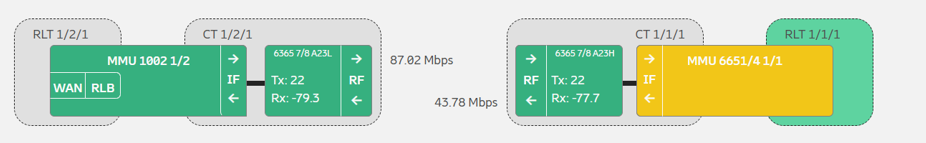

What is TX Power?
TX Power, or Transmit Power, is the amount of radio frequency energy generated by a microwave transmitter and delivered to the transmitting antenna. It is usually measured in decibel-milliwatts (dBm) or sometimes in watts (W).
The microwave radio converts digital traffic into radio frequency signals and amplifies these signals before sending them to the antenna. The antenna then focuses the energy into a narrow beam directed toward the remote site.
Unlike broadcast radio or television transmitters that radiate energy in many directions, microwave systems use highly directional dish antennas. These antennas concentrate the transmitted energy into a narrow beam, allowing communication over long distances while minimizing interference with other systems.
Simply put, TX Power determines how much signal energy leaves the transmitter before antenna gain and cable losses are taken into account.
How Microwave Transmission Works
A microwave communication system typically consists of the following components:
- Indoor Unit (IDU)
- Outdoor Unit (ODU)
- IF or fiber connection
- Microwave dish antenna
- Air path (Line of Sight)
- Remote microwave station
The transmission process begins when digital data enters the Indoor Unit. The data is processed and forwarded to the Outdoor Unit, where it is converted into a microwave RF signal. The transmitter amplifies this signal to the configured TX Power level before feeding it into the antenna.
The antenna concentrates the energy and sends it through free space toward the receiving antenna. At the far end, the received signal is amplified, demodulated, and converted back into digital information.
The strength of the transmitted signal directly influences how much energy reaches the remote receiver.
Why TX Power is Important
Transmit Power is one of the primary factors affecting microwave link performance.
1. Extending Communication Distance
As microwave signals travel through the atmosphere, they gradually lose energy because of free-space path loss.
Higher TX Power allows more signal energy to reach the remote receiver, enabling communication over longer distances.
Long-distance microwave links often require higher transmit power to compensate for propagation losses.
2. Improving Received Signal Level (RSL)
Received Signal Level (RSL) indicates the signal strength arriving at the receiving radio.
Increasing TX Power generally increases the RSL, improving receiver performance and reducing communication errors.
A stronger RSL helps maintain stable communication even when atmospheric conditions become unfavorable.
3. Increasing Link Stability
Microwave links are affected by environmental conditions such as:
- Rain
- Fog
- Dust
- Snow
- Humidity
- Atmospheric fading
Higher TX Power provides additional signal margin that helps the link remain operational during temporary signal degradation.
4. Reducing Link Outages
One of the primary objectives of microwave engineers is maximizing network availability.
Higher transmit power improves fade margin, reducing the likelihood of:
- Link drops
- Packet loss
- High Bit Error Rate (BER)
- Service interruptions
This is especially important for critical communication networks.
Typical TX Power Range
Most commercial microwave radios operate within a transmit power range of approximately:
- +10 dBm to +27 dBm
Some specialized long-distance or high-capacity microwave systems can transmit at:
- +30 dBm or slightly higher
Actual transmit power depends on several factors, including:
- Frequency band
- Equipment model
- Regulatory limits
- Channel bandwidth
- Modulation scheme
- Manufacturer specifications
Engineers configure TX Power according to link design calculations and licensing requirements.
Understanding dBm
Transmit Power is commonly expressed in dBm, which is a logarithmic measurement referenced to one milliwatt.
Some common values include:
- 0 dBm = 1 mW
- 10 dBm = 10 mW
- 20 dBm = 100 mW
- 30 dBm = 1000 mW (1 Watt)
Because dBm uses a logarithmic scale, an increase of 3 dB approximately doubles the transmitted power, while an increase of 10 dB represents a tenfold increase.
This logarithmic representation simplifies microwave link calculations.
Simple Flashlight Analogy
A useful way to understand TX Power is by comparing it to a flashlight.
Imagine standing in a dark field.
A small flashlight emits a weak beam that illuminates only a short distance.
A powerful flashlight projects a brighter beam that reaches much farther.
Microwave radios behave similarly.
A transmitter operating at low TX Power produces a weaker RF beam.
A transmitter operating at higher TX Power produces a stronger beam that is easier for the remote receiver to detect.
However, just as a flashlight cannot shine through a mountain, increased TX Power cannot overcome physical obstacles blocking the microwave path.
TX Power and Line of Sight
Microwave communication requires a clear Line of Sight (LOS) between both antennas.
The transmitted microwave signal travels in a nearly straight line.
Obstacles such as:
- Buildings
- Hills
- Trees
- Towers
- Construction cranes
can block or weaken the signal regardless of how much transmit power is used.
Therefore, proper site selection and antenna height remain essential.
Factors Affecting Required TX Power
Several engineering considerations determine the appropriate transmit power for a microwave link.
Frequency Band
Higher frequencies experience greater atmospheric attenuation.
For example:
- 6 GHz links generally require less transmit power over long distances.
- 23 GHz links often require higher fade margins because rain attenuation is much greater.
Link Distance
Longer microwave paths experience greater free-space loss.
Consequently, longer links typically require:
- Larger antennas
- Higher antenna gain
- Higher TX Power
- Better receiver sensitivity
Weather Conditions
Rain attenuation increases with frequency.
Heavy rainfall absorbs microwave energy, reducing received signal strength.
Higher transmit power helps compensate for temporary weather-related losses.
Receiver Sensitivity
Modern microwave receivers have excellent sensitivity.
A highly sensitive receiver may require less transmit power while still maintaining reliable communication.
Antenna Gain
Large dish antennas focus RF energy more effectively than smaller antennas.
Higher antenna gain often allows lower TX Power while maintaining excellent performance.
TX Power and Link Budget
Microwave engineers calculate a link budget before installing any microwave system.
The link budget accounts for:
- TX Power
- Antenna gain
- Cable losses
- Free-space path loss
- Atmospheric losses
- Receiver sensitivity
- Fade margin
A properly designed link budget ensures that sufficient signal reaches the receiver under both normal and adverse conditions.
Understanding EIRP
Another important parameter related to TX Power is Effective Isotropic Radiated Power (EIRP).
The relationship is:
EIRP = TX Power + Antenna Gain − Cable Loss
EIRP represents the effective power radiated by the antenna after accounting for antenna gain and transmission losses.
For example:
Suppose a microwave radio has:
- TX Power = +20 dBm
- Antenna Gain = +38 dBi
- Cable Loss = 2 dB
Then:
EIRP = 20 + 38 − 2 = 56 dBm
This value represents the effective transmitted signal strength leaving the antenna.
Because antenna gain significantly increases effective radiated power, even moderate TX Power can produce excellent long-distance communication.
Does Higher TX Power Always Mean Better Performance?
Although increasing transmit power generally improves communication, more power is not always better.
Excessive TX Power can create several problems.
Increased Interference
Higher transmitted power may interfere with nearby microwave systems operating on similar frequencies.
Regulatory Restrictions
National telecommunications authorities establish maximum permitted transmit power levels.
Operators must comply with licensed power limits to prevent spectrum interference.
Equipment Limitations
Power amplifiers have maximum operating specifications.
Exceeding recommended power levels can reduce equipment life or damage RF components.
Power Consumption
Higher transmit power requires more electrical energy.
This increases operating costs and heat generation.
For these reasons, microwave engineers configure transmit power carefully rather than simply selecting the highest available setting.
Automatic Transmit Power Control (ATPC)
Many modern microwave systems include Automatic Transmit Power Control (ATPC).
Instead of transmitting continuously at maximum power, the radio automatically adjusts TX Power according to current link conditions.
During clear weather:
- Lower TX Power
- Reduced interference
- Lower energy consumption
During heavy rain:
- Increased TX Power
- Improved RSL
- Better link stability
ATPC improves network efficiency while maintaining communication reliability.
TX Power and Adaptive Modulation
Modern microwave radios also employ Adaptive Modulation.
When weather degrades the signal:
- TX Power may increase.
- Modulation automatically decreases.
For example:
- 2048QAM
- 1024QAM
- 256QAM
- 64QAM
- QPSK
Lower modulation schemes require lower signal quality and therefore maintain communication under difficult conditions.
The combination of adaptive modulation and automatic transmit power control significantly improves network availability.
Best Practices for Managing TX Power
To achieve reliable microwave communication, engineers should follow several best practices:
- Configure TX Power according to the approved link budget.
- Use Automatic Transmit Power Control where available.
- Select appropriate antenna sizes.
- Maintain proper antenna alignment.
- Ensure clear Line of Sight and Fresnel zone clearance.
- Minimize cable losses through proper installation.
- Monitor Received Signal Level (RSL) regularly.
- Check Bit Error Rate (BER) during preventive maintenance.
- Avoid unnecessary increases in transmit power.
- Comply with regulatory transmit power limits.
Following these practices helps maximize reliability while minimizing interference and operating costs.
Practical Example
Consider two microwave towers separated by 40 kilometers.
Each site uses:
- Microwave radio
- 1.2-meter dish antenna
- TX Power of +23 dBm
During normal weather, the received signal level is –42 dBm, providing excellent communication.
Heavy rainfall reduces signal strength by approximately 8 dB.
Without adequate transmit power or fade margin, the received signal could fall below receiver sensitivity, causing the link to fail.
However, if the radios support Automatic Transmit Power Control, the transmitter temporarily increases output power, helping maintain sufficient RSL until weather conditions improve.
This example demonstrates why TX Power is such an important factor in microwave system reliability.
Conclusion
TX Power (Transmit Power) is one of the most fundamental parameters in microwave communication systems. It represents the strength of the radio frequency signal transmitted from one microwave station to another and plays a major role in determining communication distance, received signal level, fade margin, and overall link stability. Most commercial microwave radios operate within a transmit power range of +10 dBm to +27 dBm, while specialized long-distance systems may reach +30 dBm or more, depending on equipment capabilities and regulatory limits. Although higher TX Power can improve network performance—especially during rain, dust, and other adverse weather conditions—it must always be considered alongside antenna gain, cable loss, receiver sensitivity, frequency band, and proper line-of-sight design. Engineers also rely on concepts such as Effective Isotropic Radiated Power (EIRP), Automatic Transmit Power Control (ATPC), and adaptive modulation to optimize performance while minimizing interference and power consumption. By understanding and correctly configuring TX Power, telecommunications professionals can design robust microwave links that deliver high availability, reliable connectivity, and efficient transmission for modern communication networks.
